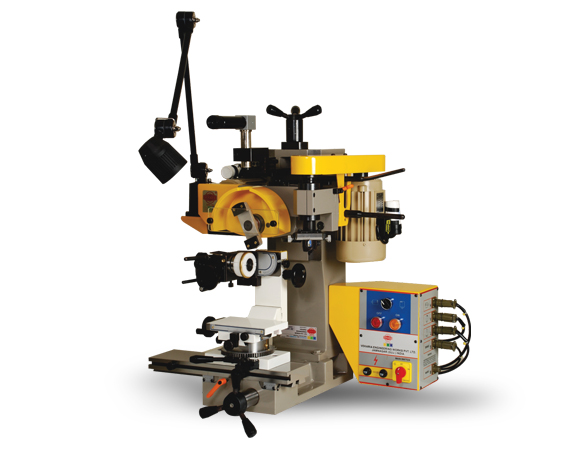

MDH-540Faceting & Milling Machine Combined Double Head.

This is a compact mini double head ideally suited to create multi-faceted designs on Bangles, Rings (Bands), Signet Rings, Pendants, Ear Tops, Bali, various shapes of Beads and Chains.

  • Any diameter of tool holder for horizontal and vertical center and cutting level remains same.
  • Vertical axis with micrometric screw adjustments for fast location/retraction of work piece.

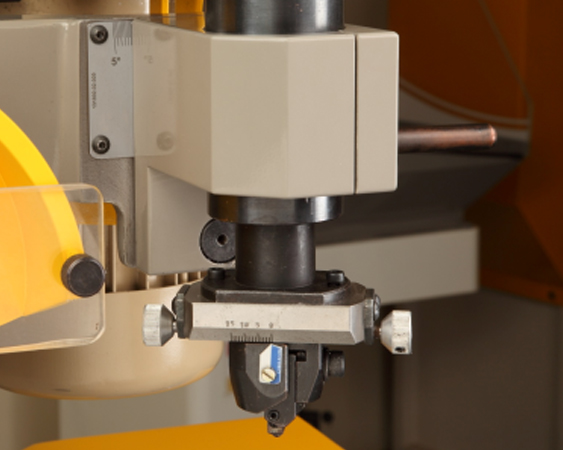

  • Vertical spindle axis has a tilting facility from 0˚ to 5˚.
  • Manual feed lever with an adjustable depth screw for depth to cut on job.
  • The longitudinal slide shifting from horizontal to vertical and vice versa takes precisely two seconds.
  • 'X' is provided with stoppers and locking device for mass production and safety.

This machine is also especially designed to work on the following attachments:

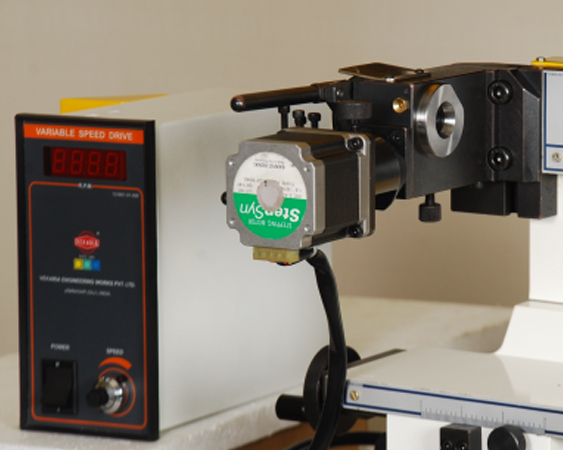

  • Self-lining device with stepper motor and digitally read controller.
  • Single zig-zag (Laser) attachment.
  • Double zig-zag (Laser) attachment.
  • 'D' Tilting device for round & half-round (Kanas type) bangle and ring.
  • Multi star horizontal tool holder.
  • Has an effective “Auto Electro Brake System” which stops horizontal spindle instantly.
  • ...And many more attachments are innovated for special jewelry.
