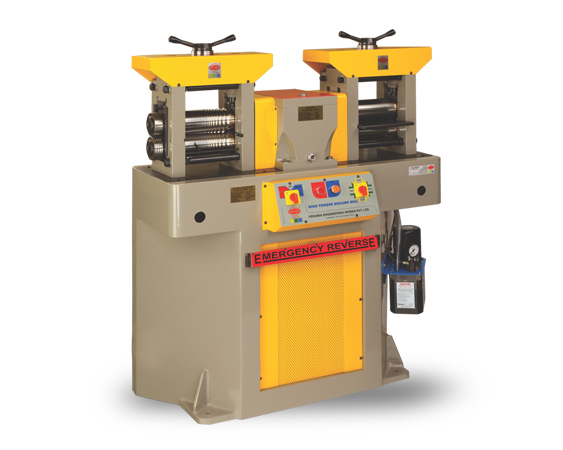

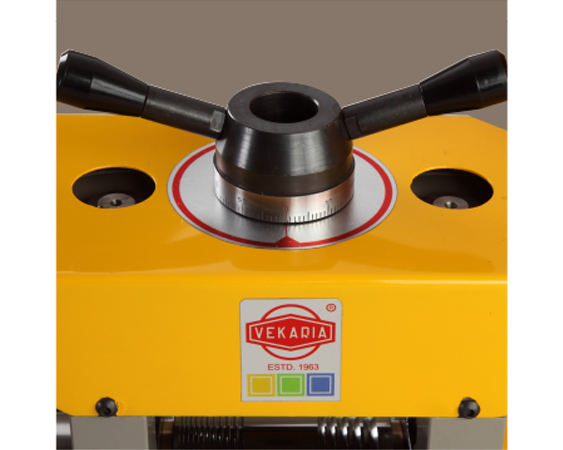

HRX - 8580DWire and Sheet Rolling Mill Combined Roll. Head Size: 7.1 / 16” X 3.3 / 8” (180 mm X 85 mm)

This is a sturdy heavy duty motorized rolling mill for breaking down gold and silver. Most ideal for small as well as large sized jewelry workshops.

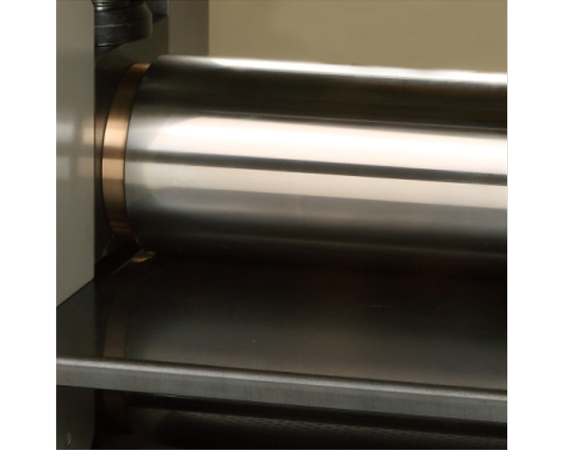

  • Rollers are of high alloy steel, hardened and ground.
  • Special transmission joints, transmit full power to the rollers when opening to maximum aperture at same torque.
  • Noiseless application of high accuracy.
  • Roller's both end housed in bushing of gunmetal block to avoid dust particles and oil leakage. This unique feature is provided only in our rolling mills. It gives smooth friction free long life to rollers.
  • Reduction gear operates immersed in an oil bath.

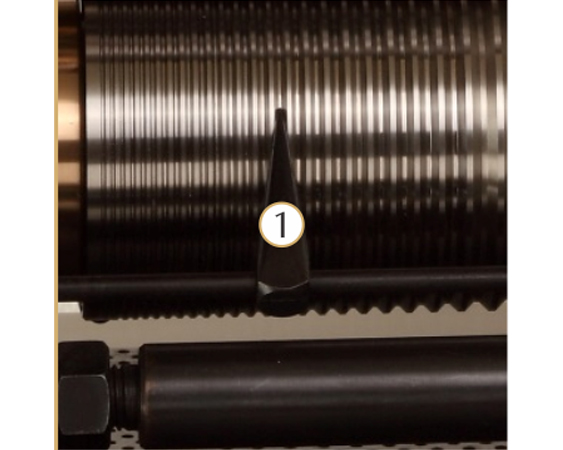

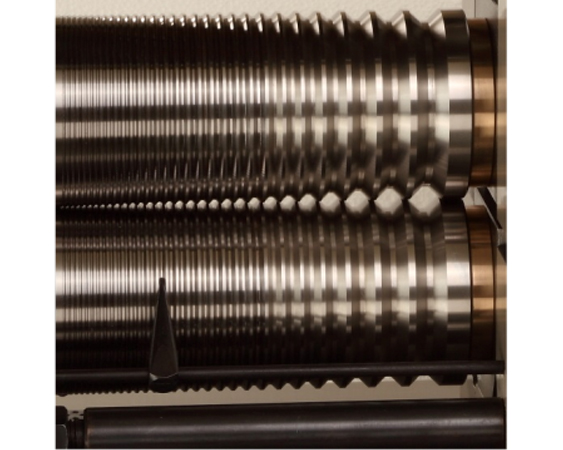

  • Roller (Garedi) with round and half round / 'V' shape groove and also special designs on request.

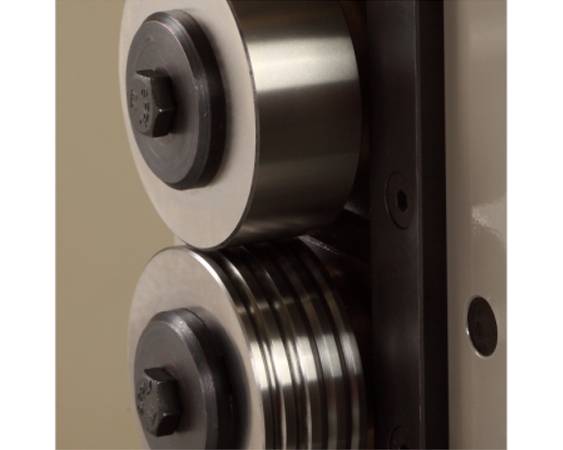

  • Easy and quick replacements of extra rollers and side rollers (Garedi).

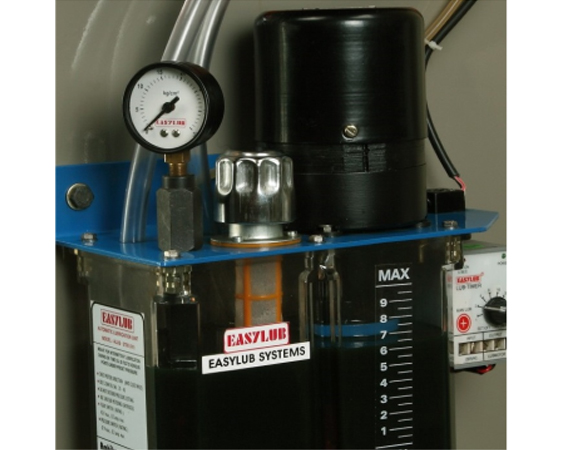

  • Lubrication through centralized pressure system with motorized lubrication system.
  • Minimum floor space required.
  • 2 Speed 3/5 hp Three Phase.
  • Sheet Rolling Supporting Plate.

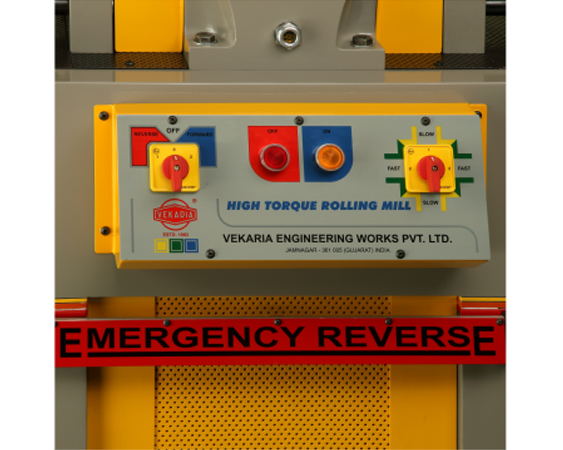

  • Auto Reversing System Switch (Emergency reverse) AMRX7525C-03 to prevent any untoward incident.
  • Way to way working with closed rollers, suitable for chain making industries (Can be made on request).

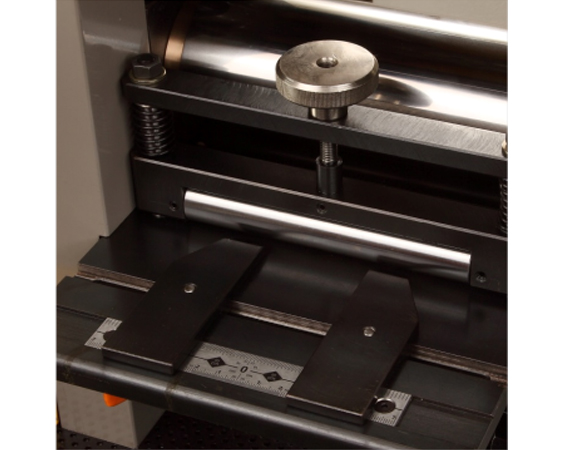

  • Strip width adjustment device (Optional accessory) AHRX8540D-05 / AHRX8580D-05.
